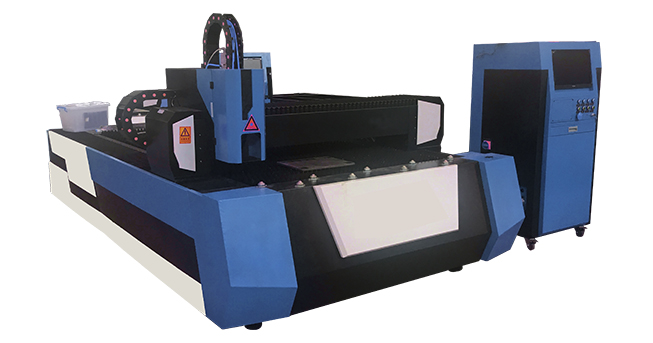

Product Description
Application industry
Widely used in electric power, automobile manufacturing, mechanical equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertisement signs, car decoration, the production of sheet metal, lighting hardware, display equipment, precision parts, metal products and other industries.
Application materials
Professional for cutting various thin metal sheet, steel plate, stainless steel plate,cutting galvanized sheet, electrolytic plates and other metal materials.
| Model | PSCF3015 |
| Laser type | Fiber laser |
| Wavelength | 1070-1083nm |
| Laser power | 500W |
| Working area | 1500X3000mm |
| Maximum cutting speed | 18m/min 10m/min(Depends on materials) |
| Cutting thickness | 0.2-7.2mm(Depends on materials) |
| Max.Acceleration speed | 0.6G |
| Minimum linear width | ≤0.1mm |
| Repeat positioning accuracy | ±0.05mm |
| Control system | BMC1204(Cypcut) |
| Transmission system | Imported dual driver gear rack |
| Cooling method | Industrial water chiller |
| Power consumption | ≤9kW |
| Power supply | AC380V 50/60HZ |
| Total Weight | 3000KGS |
Product Features
1.Machine body, crossbeam and worktable adopt integral welding structure, in accordance with the standard large machine, to stress annealing after precision finishing and then for vibration aging treatment, it can completely eliminate the welding stress and processing stress, keep high-strength, high precision, no deformation during its long term usage.
2.X and Y axis use imported Japan YASKAWA servo motor&driver, with Italy MOTOVARIO reducer, high precision, high speed, stable performance and durable, ensure the high speed operation of the whole machine.
3.Imported high precision gear racks and linear guide rail, ensure stable and high precision.
4.High quality fiber laser generator, with good quality laser beam, stable performance, without reflection lens and light path adjustment, maintenance free essentially, maximum working time is 100,000 hours.
5.Low power consumption, energy saving, overall power consumption 1/3 of the same power YAG machines, more than 3 times cutting speed.
6.Based on Windows operating system, use professional Cypcut numerical control system for fiber laser cutting machine, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.
