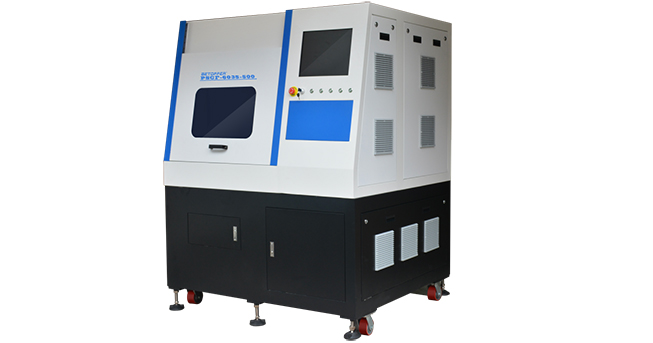

Mat-6035 500wat High Precision Fiber Laser Cutting Machine
Mat-6035 500wat High Precision Fiber Laser Cutting Machine
Product Description
Application industry
Widely used in glasses, electrical & electronics and other precise mechanical hardware and micro-electronics industries.
Application materials
Professional for cutting various thin metal sheet, steel plate, stainless steel plate,cutting galvanized sheet, electrolytic plates and other metal materials.
| Model | PSCF6035 |
| Laser type | Fiber laser |
| Wavelength | 1070-1083nm |
| Laser power | 500W |
| Working area | 580X350mm |
| Maximum cutting speed | 18m/min 10m/Min(Depends on materials) |
| Cutting thickness | 0.2-7.2mm(Depends on materials) |
| Max.Acceleration speed | 0.6G |
| Minimum linear width | ≤0.1mm |
| Repeat positioning accuracy | ±0.05mm |
| Control system | BMC1204 (Cypcut) |
| Transmission system | High precision ball screw |
| Cooling method | Industrial water chiller |
| Power consumption | ≤5kW |
| Power supply | AC380V 50/60HZ |
| Total Weight | 1200KGS |
Product Features
1.Adopt HIWIN precision ground ball screw and Japan YASKAWA servo motor&driver, ensure stable performance, high precision and high speed.
2. Dedicated fiber laser cutting head with capacitive sensor, high sensitivity, stable and reliable performance
3.High transformation efficiency of fiber laser, which up to 30%, saving the working power consumption by a large margin, achieves low operating costs.
4.Precise collimator used for guide rail assembling and debugging, precision is up to 0.01mm.
5.Smooth cutting edge, beautiful surface, no deformation
6.Adopt marble worktable to enhance precision cutting result.
7.Fully closed protective cover
8.Dedicated software enables any graphic or text to be instantly designed or processed. Flexible and easy operation.
