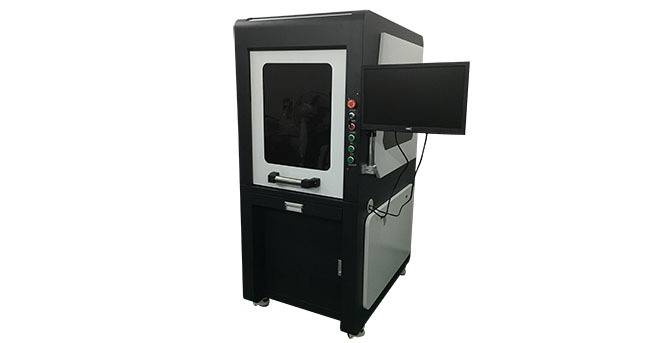

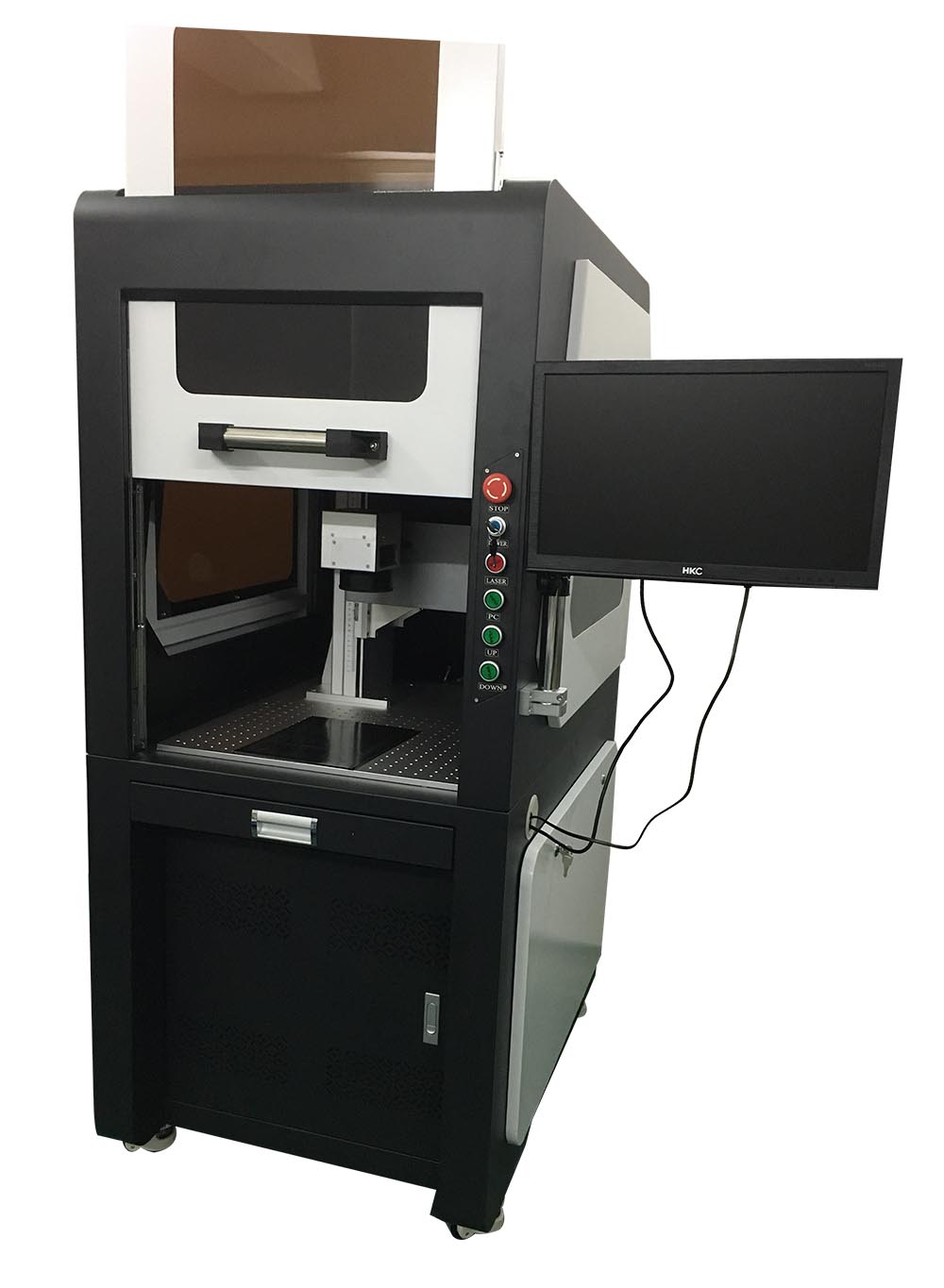

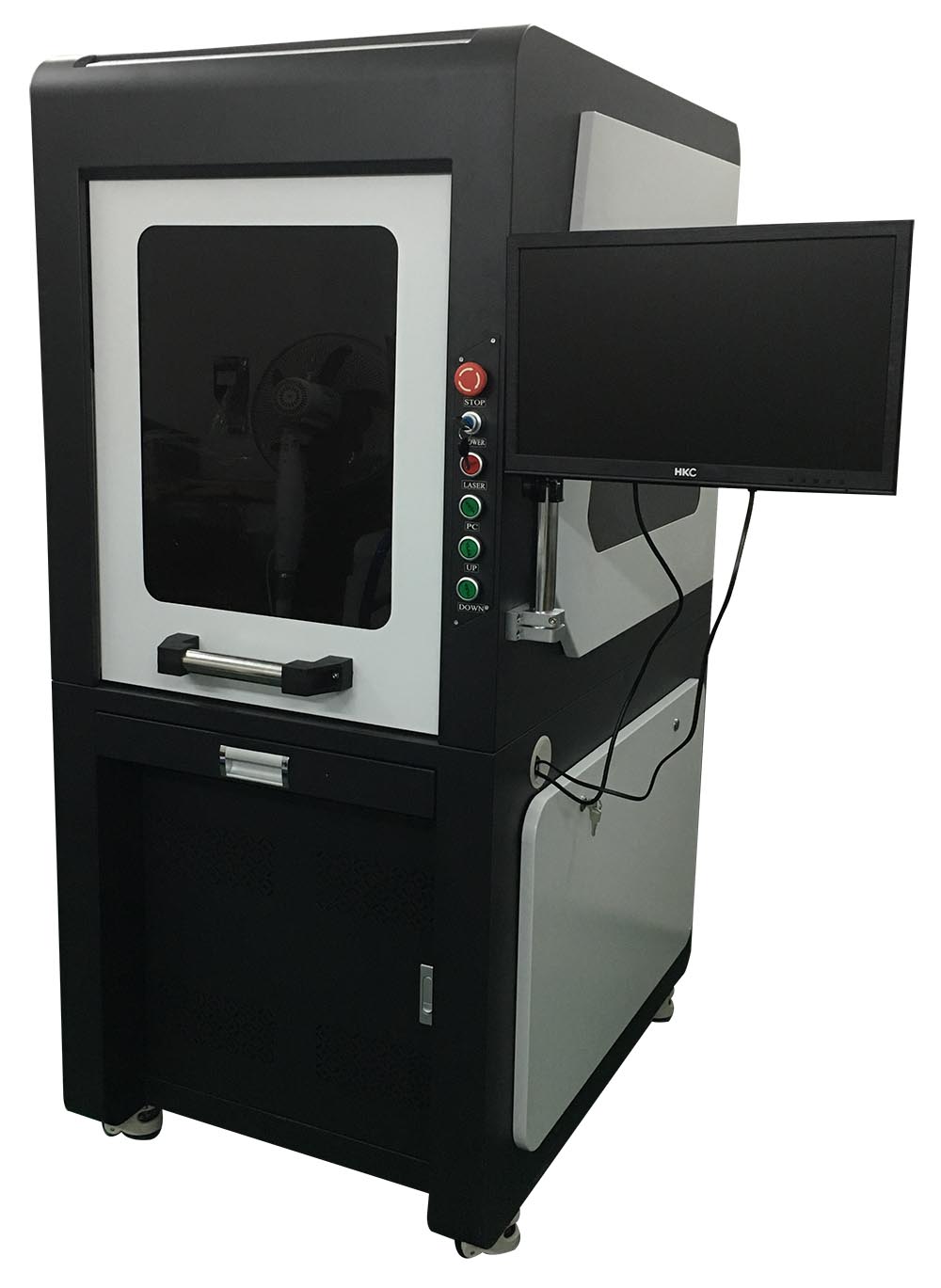

UV Laser Marking Machine
Features
1.Assembly line laser marking machine: stability laser source, high-speed digital galvanometer, and embedded flight marking controller. High system integration, low power consumption, compact structure, and stable performance.
2.Easy operation: touch screen operation, friendly human-machine interface, and simple operation, easy to use.
3.Small occupied space: the optical cavity and control box are installed integrally on the lifting rack, which can be adjusted up and down, front and back, pitch and multi-angle, so it is easy to connect with the assembly line on site.
4.Multi- function: support importing DXF, PLT vector and image graphic format; support dot matrix font, TTF font and self- development font; support long marking, tube piecewise triggering, various barcode and two dimensional marking; support different galvanometer correction methods; support the variety of leakage marking, alarm and I/O auxiliary function; support generating date code, time code, serial number and jump code automatically. Those functions greatly meet the demands of different industries.
5.Welcome to contat us for the assembly line laser marking machine price.
Technical Parameter
| Wavelength(nm) | 355 |
| Power(W) | 3/5W |
| Spot mode | TEM00 , M2<1.2 |
| Pulse frequency &Duty ratio | 30~100KHz，0~100% |
| Cooling method | Air，water optional |
| Marking area | 110mmX110mm |
| Working area | 184mm |
| Min line width | 0.02mm |
| Min character | 0.2mm |
| Marking speed | ≤100m/min |
| Supported graphic format | PLT, DXF , JPG, PNG, BMP |
| Voltage | AC220V±10% |
| Frequency (Hz) | 50/60 |
| Machine dimension | 570mm*740mm*1200mm(Operation station) |
| 380mm*610mm*1420mm(Lifter) | |
| Machine weight | Approximately 70KG |
| Temp(℃) | 10-35℃ |
| Humidity | 5~85%，no-condensing，no- dust or few dust |
| Gross power | 1.6KW |
| Laser safety level | 4 Class |
Application
Applicable industries:
This equipment is widely used in food, drink, water, liquor industry, pharmaceutical, cable and tube, tobacco, lighting, electronic chip industry and so on.
Applicable material:
Suitable for paper, PVC, rubber, wood, glass, ceramics, plastics, PET, HDPE, leather etc.
Sample:
